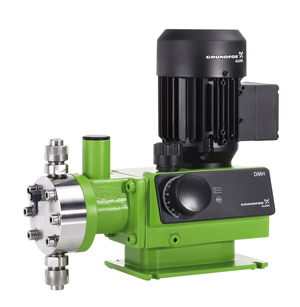

DMH 28x
The optimum capacity graduation between 0.63 and 2 × 222 l/h makes this series of extra-rugged dosing pumps stand out.
All models are equipped with universally resistant full teflon diaphragms as well as with the patented ALLDOS diaphragm protection system AMS and a vernier scale with a very fine graduation. A variety of options is available, e.g. electric or pneumatic actuators, frequency motor control, special dosing heads or a double diaphragm system with breakage signal.
Reliability and accuracy guarantee optimum process safety:
- High dosing accuracy and exact reproducibility of the dosing flow. The deviations in dosing flow constancy and linearity are below 1%.
- High degree of functional safety by standardised diaphragm breakage system, overpressure valve and vent valve of the hydraulic system.
- The pumps can be universally employed due to the full teflon dosing diaphragm and optimum material combinations of the parts in touch with the media.
- Very easy adjustment of the dosing flow: the dosing flow can be adjusted accurately, even if the system is not running.
Further functions:
- Especially for applications in chemical engineering: adjustment of the dosing flow ranges by different stroke numbers
- The number of spare parts required is essentially reduced thanks to a sophisticated modular system.
- Easy commissioning due to the dosing head deaeration
- Can be equipped with further quality components, as electric actuator, motor frequency control and diaphragm breakage signal.
- The pump types DMH 280 models 280 / 281 / 283 / 285 / 286 / 287 / 288 and DMH models 28x 281 are optionally available with Etron Profi electronics and diaphragm breakage signal
Applications:
The DMH 280 models 280 / 281 / 283 / 285 / 286 / 287 / 288 pumps offer high dosing accuracy as well as modern interfaces for function monitoring and automatic control and regulation. Therefore, they are made to accomplish the demanding dosing and regulation tasks of water technology and chemical engineering industry.
