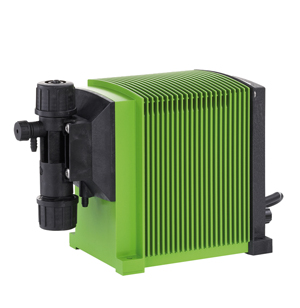

DME up to 48 l/h
The innovative technology of the DME range ensures smooth and constant dosing at any time. Simply set the dosing capacity at the user-friendly display, the pump will do the rest. The simple multilingual menu gives access to many standard control functions such as pulse, timer, batch and anti-cavitation control.
Applications:
Precise dosing of chemicals
- water and waste water treatment
- cleaning installations
- swimming pool water
- process plants
- pulp and paper
- textile industry
| Models | Materials | Capacity | Max | Adjustment |
| DME 2-18 | PP, PVDF,Stainless steel 1.4401 | 2.5 l/h | 18 bar | 1:1000 |
| DME 8-10 | PP, PVDF,Stainless steel 1.4401 | 7.5 l/h | 10 bar | 1:1000 |
| DME 12-6 | PP, PVDF,Stainless steel 1.4401 | 12 l/h | 6 bar | 1:1000 |
| DME 19-6 | PP, PVDF,Stainless steel 1.4401 | 18.5 l/h | 6.2 bar | 1:1000 |
| DME 48-3 | PP, PVDF,Stainless steel 1.4401 | 48 l/h | 2.6 bar | 1:1000 |
Features and benefits:
- Precise capacity setting in millilitres or litres
- Operation panel with plain-text display at the side or at the back
- Key lock
- 0/4-20 mA control
- Pulse-/timer-based batch control
- Anti-cavitation function
- Easy calibration function
- Field bus communication module (option)
