Vaccuperm VGB-103

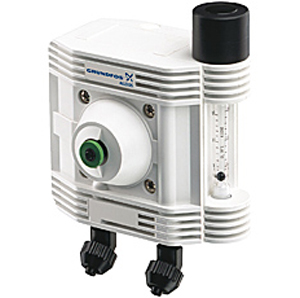

The Vaccuperm VGB-103 series by Grundfos Alldos is a vacuum chlorine gas dosing system for direct installation on a chlorine cylinder or a chlorine gas header line. Vaccuperm VGB-103 is available in 5 measuring ranges for maximum dosing flows of 4 kg/h chlorine.
Structure:
- inlet valve optionally with yoke connection or union nut for cylinder connection
- chlorine quantity adjustment valve
- measuring tube according to the floater principle
Versions:
- Compact dosing unit VGB-103 with injector and installation accessories
- Modular system including vacuum regulator VGB-111 with inlet valve and safety overpressure valve for direct installation on cylinders as well as dosing unit VGB-113 with chlorine quantity adjustment valve and measuring device for wall mounting or installation on a mounting plate
Convenient operation and monitoring:
- ergonomic arrangement of the control elements and display
- easy adjustment and control of the dosing flow
- automatic empty indication
Very good price/performance ratio
- high-quality and resistant materials for a long service life
- marketable conception for high precision and operating safety
Applications:
- Drinking water
- Swimming pool water
- Industrial water
- Industrial service and waste water
- Mobile disinfection systems
