Conex® DIA-1
ALLDOS’ new generation of measuring amplifiers and controllers measure and control pH, redox, chlorine, chlorine dioxide, ozone, hydrogen peroxide, peracetic acid and fluoride.
Convenient operation: easy, quick and universal
- Thanks to the outstanding plain-text operator prompting, Conex makes even a complicated adjustment very easy; a few keys lead safely to the goal.
- Conex speaks seven languages fluently. Whether German, English, French, Dutch, Spanish, Italian or Portuguese are concerned, all settings can be made, checked and modified world-wide in any of these languages.
Progress and innovation: technology for safety
- The new unique potentiostat was especially designed for Conex and adapts to the different input sizes automatically.
- The process safety due to the automatic wire break control of the current loops is also unique.
- Exact chlorine measurement with automatic pH-value and temperature compensation are incorporated in one unit as a further innovation.
Further features:
- Manual or automatic temperature compensation
- all control and regulation functions up to PID and continous control
- Logbook function: recording sensor data and calibration values with date and time
- user coding function for the definition of special input functions, e.g. the system administration
- error message function if the sensors don’t work
Versions:

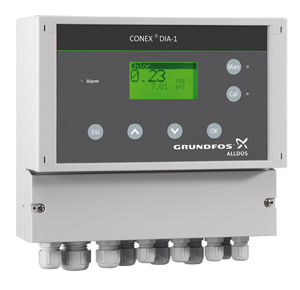

- Conex® DIA-1 in an enclosure for wall mounting, protection IP 65, with integrated potentiostat
- Conex® DIA-1 in an enclosure 96 × 96 mm (protection IP 54) for control panel installation, incl. separate sensor interface (protection IP 65)
- 230/240 V (50/60 Hz) or 115/120 V (50/60 Hz) or 24 VDC
