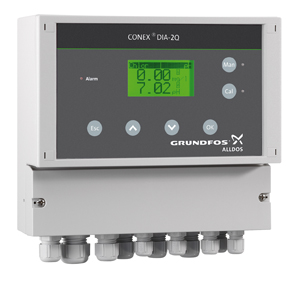

Conex® DIA-2
Back

Conex_dia-2q Enquire Now

Plain text menu and operator prompting: Everyone can use Conex® DIA-2 and set process parameters with ease – even if they have little previous knowledge of the unit.

Conex® DIA-2, the dual measuring amplifier and controller

The Conex® DIA-2 allows you to measure and control two parameter groups in parallel and to show these side by side on the display:

  • Parameter 1: chlorine (Cl2), chlorine dioxide (ClO2), ozone (O3),
    peroxide (H2O2)
  • Parameter 2: pH

Further Conex® DIA-2 can measure the temperature of the water being disinfected – and can do so simultaneously.

Applications:

  • Drinking water
  • Swimming pool water
  • Industrial water
  • Waste water

Amplifier Conex® DIA-2

Electronics 16 bit microprocessor system
Display high resolution plain-text LCD
Enclosure wall mounting (IP 65) or control panel installation (IP 54)
Relay outputs 2 potential-free control relays
(one for every of both parameters)adjustable as:
– 2-position-controller (P / PI / PID): pulse-pause or
pulse-frequency
– setpoint controller
Signal outputs 4 analogue signal outputs, galvanically
separated from the inputs - 2 outputs for the parameters (1 for every of the two parameters) - 1 for the continous controller for parameter 1 - 1 for the temperature or for the continous controller for parameter 2|

Features & Benefits:

  • Plain text menu and operator prompting: Everyone can use Conex® DIA-2 and set process parameters with ease – even if they have little previous knowledge of the unit.
  • Straightforward device calibration feature with plausibility check prevents errors occurring
  • Multilingual menu: Simply change over to the language that you prefer
  • Self-monitoring feature ensures excellent water quality at all times
  • All disturbance variables are compensated means that chemical consumption is reduced to very low levels
