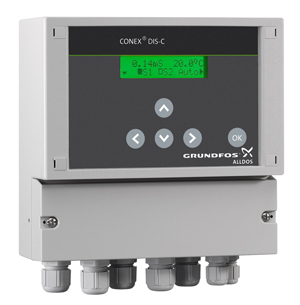

Conex® DIS-C
ALLDOS now also provides inductive conductivity measurement procedures for measuring concentrated acids, lyes and saline solutions.
Inductive electrode 314-417
Together with the inductive electrode, there are now four measuring ranges available between 0 and 2000 mS/cm. Since the measuring loops are not in direct contact with the sample water, this conductivity electrode can also be used in aggressive media.
Inductive conductivity electrodes are guaranteed a long service life in even the harshest environments .
Conductive measuring cells 314-400 to -416
The conductive dual-conductor stainless steel electrode measuring cells cover the measuring range from 0.05 µS/cm to 20 mS/cm with pressure ranges of 0-6 bar and a maximum temperature of 50° C. All electrodes are fitted with a platinum resistance thermometer for temperature measurement and temperature compensation.
A second series of measuring cells with the same measuring-range steps is available for higher pressures up to 10 bar and working temperatures up to 130° C.
Applications for inductive measurements:
- Automatic desalination devices in cooling towers
- Chemical and metal-working industry
- Waste-water treatment
Applications for conductive measurements:
- Bottle washing
- CIP
- Drinking water treatment
- Swimming-pool water treatment
The benefits of Conex® DIS-C at a glance:
- Precise conductivity measurement with the conductive dual-electrode measuring
cell or the inductive sensor - Simple, logical, plain-text navigation
- Automatic adjustment of electrode control
- Microprocessor-controlled PI controller
- Outputs for controlling dosing pumps
- Aligned signal outputs for linking to a central control system and high availability
- Also available as 96×96 mm control panel version in accordance with DIN 43700
- When used in combination with ALLDOS dosing pumps, Conex® DIS-C for conductivity
provides an extremely simple and effective vehicle for high-quality measuring
and control
